Name: DBX 231s Dual Channel 31-Band Equalizer
Brand: sevenplus
SKU: XM1800S-1-3-1-1-1-1-1-1-4-2-1-1-1-1-1-1-1-2-1-1-2-1-1-2-1-1-1-1-1-1-1-2-1-1-1-1-1-1-1-1-1-1-1-1-1-2-1
Price: 1017 AED
Availability: InStock
Rating: 5 (1 reviews)

DBX 231s Dual Channel 31-Band Equalizer

AED 1,017.00

Input Connectors:

1/4″ TRS, female XLR (pin 2 hot), and barrier terminal strip

Input Type:

Electronically balanced/unbalanced, RF filtered

Input Impedance:

Balanced 40 kOhm, unbalanced 20 kOhm

Max Input:

>+21dBu balanced or unbalanced

CMRR:

>40dB, typically >55dB at 1kHz

CMRR:

1/4″ TRS, male XLR (pin 2 hot), and barrier terminal strip

Output Connectors:

Impedance-balanced/unbalanced, RF filtered

Output Type:

Balanced 200 ohm, unbalanced 100 ohm

Output Impedance:

>+21dBu balanced/unbalanced into 2 kOhm or greater; >+18dBm balanced/unbalanced (into 600 ohm)

Max Output:

20Hz to 20kHz, +0.5/-1dB

Bandwidth:

<10Hz to >50kHz, +0.5/-3dB; +/-15dB range; +/-6dB range

Frequency Response:

109dB; 115dB

Dynamic Range:

90dB, 97dB

Signal to Noise Ratio:

<0.005%

THD+Noise:

<-80db, 20Hz to 20kHz

Interchannel Crosstalk:

<-80db, 20Hz to 20kHz

Bypass Switch:

Bypasses the graphic equalizer section in the signal path

Low cut Switch:

(recessed) Activates the 40Hz 18dB/octave Bessel high-pass filter

Range Switch:

(recessed) Selects either +/- 6dB or +/- 15dB slider boost/cut range

I/O Meter:

4-LED bar graph (Green, Green, Yellow, Red) at -10, 0, +10, and +18dBu

Indicators:

EQ Bypass (Red); Clip (Red); Low Cut (Red); +/-6dB (Yellow); +/-15dB (Red)

ENQUIRE NOW

Delivery

For all cash on delivery orders, the delivery will be initiated only after confirming the order with the customer via call from our sales team.
In the case of card payment or bank transfer, we will proceed with the delivery only once the money is credited in our bank account.
Within city limits of Dubai and Sharjah emirates products ordered will be delivered within 1-2 days. Delivery schedule for other emirates will be completed within 2-3 days.
Free delivery for products purchased above AED 599.
We charge a nominal fee for the same day delivery. Charges are mentioned at the time of checkout.
The order for the items eligible for delivery should be placed before 12pm to get the items delivered the same day or else the delivery will be scheduled for the following day provided it’s a working day.
Delivery is not applicable on Sundays or on any public holidays.

Return And Refund Policy

Refund or exchange of the purchased product is subject to the following terms and conditions:>

1) Products must be returned within 7 days from the date of delivery received, the product must be in good and unused condition (must be unopened and in original packaging).

2) Refund to be requested with a valid reason (damaged on delivery, manufacturing defect, incorrect product)

3) Seven Plus team will inspect returned items at the collection point. (Refund will not be accepted if anything missing, used or not placed in the original packaging).

4) In the case a faulty or incorrect item has been delivered, Seven Plus will cover the return shipping costs (contact info@sevenplusuae.com)

All Card payments will be refunded to the bank account within 14 working days.

Warranty Returns/Repair Service contact : info@sevenplusuae.com for more information

Products in Promotion or Special Offer are Non-refundable or non-exchangeable
1) Services completed (Delivery, installation and labour) are Non-refundable.

Help

Give us a shout if you have any other questions and/or concerns.
Email: info@sevenplusuae.com
Phone: +971 50 700 1176
Phone: +971 50 726 3054

SKU: XM1800S-1-3-1-1-1-1-1-1-4-2-1-1-1-1-1-1-1-2-1-1-2-1-1-2-1-1-1-1-1-1-1-2-1-1-1-1-1-1-1-1-1-1-1-1-1-2-1 Categories: All Products Brand DBX Recording Studio Products Tag: equalizer

Free

Worldwide
Shopping

100%

Guaranteed
Satisfaction

30 Days

Guaranteed
Money Back

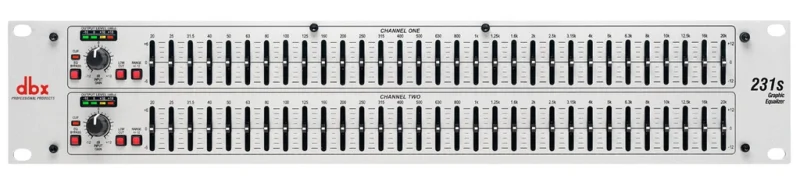

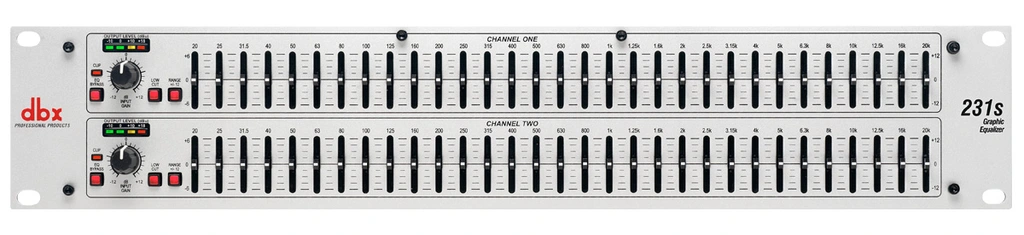

Dual Channel 31-Band Equalizer

Features

Dual 31-band, 1/3-octave Constant Q frequency bands
Switchable boost/cut ranges of ±6 or ±12 dB
Front panel bypass switch
±12 dB input gain range
4-segment LED ladders for monitoring output levels
XLR and TRS Inpts and Outputs
Frequency Response of <10Hz to >50kHz
Dynamic range of greater than 108dB
