Name: DBX 1261 12x6 Digital Zone Processor
Brand: sevenplus
SKU: XM1800S-1-3-1-1-1-1-1-1-4-2-1-1-1-1-1-1-1-2-1-1-2-1-1-2-1-1-1-1-1-1-1-2-1-1-1-1-1-1-1-1-1-1-1-1-1-2-1
Price: 4230.9 AED
Availability: InStock
Rating: 5 (1 reviews)

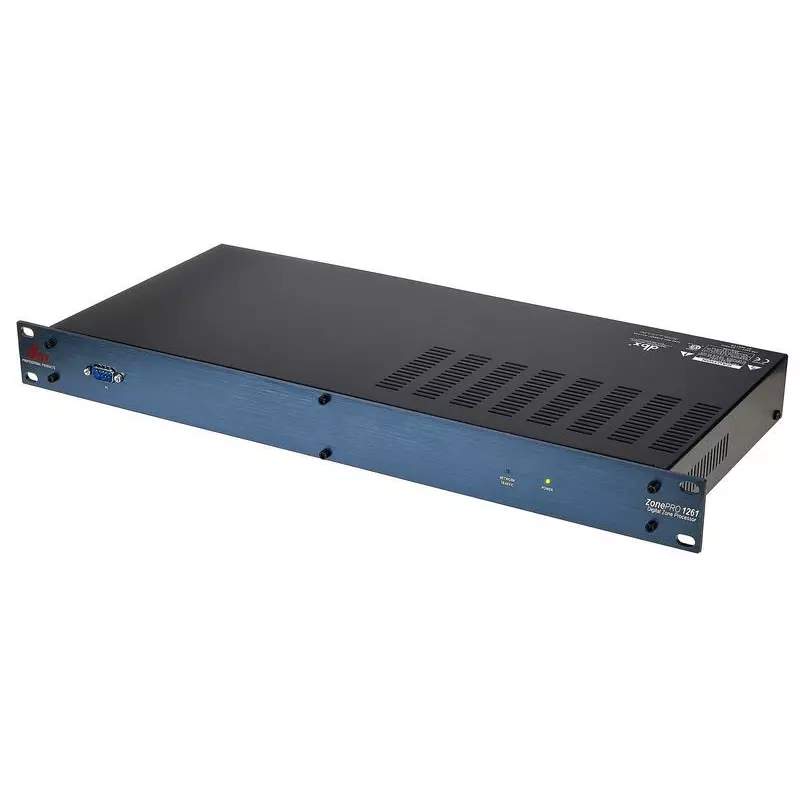

DBX 1261 12×6 Digital Zone Processor

AED 4,230.90

Input :	12 Total (2) Switchable mic or line, (8) RCA, and (1) S/PDIF
Input Connectors:	Euroblock (Line and Mic) RCA (Source)
Input Impedance:	Euroblock > 50kΩ Balanced, >25kΩ Unbalanced, RF Filtered; RCA >25kΩ Unbalanced, RF Filtered
Max Input:	+20dBu Mic/Line, +12dBu RCA
CMRR:	> 40dB, typically >55db @ 1kHz
Mic Preamp gain:	30 to 60dB
Mic Preamp Equivalent Input Noise (EIN):	<-118dB
Mic Preamp Phantom Power:	15V
Output:	6 Analog
Output Connectors:	Euroblock
Output Type:	Electronically balanced, RF filtered
Output Impedance:	120 ohms balanced, 60ohm unbalanced
Max Output:	+20dBu
A/D Converter:	dbx Type IV™ conversion system
A/D Dynamic Range:	(line) >113 dB, A-weighted, >110 dB unweighted
Type IV Dynamic Range:	>119 dB, A-weighted, 22kHz BW; >117 dB, A-weighted, 22kHz BW
Sample Rate:	48kHz
D/A Dynamic Range:	112 dB A-weighted, 109dB unweighted
Dynamic Range:	>110 dB A-weighted, >107dB unweighted
THD+Noise:	0.003% typical at +4dBu, 1kHz, 0dB gain
Frequency Response:	20Hz – 20kHz, +/-0.5dB
Interchannel Crosstalk:	>80dB typical
Propagation Delay:	0.6 msec
Operating Voltage:	100-240 VAC, 50/60Hz
Power Consumption:	27 W
Unit Weight:	16.8 lbs.(3.1 kg)
Shipping Weight:	8.8 lbs. (4.0 kg)
Dimensions:	1.75” H x 5.75” D x 19” W
Safety Agency Certifications:	UL 60065, IEC 60065, E 60065, EN 55013

ENQUIRE NOW

Delivery

For all cash on delivery orders, the delivery will be initiated only after confirming the order with the customer via call from our sales team.
In the case of card payment or bank transfer, we will proceed with the delivery only once the money is credited in our bank account.
Within city limits of Dubai and Sharjah emirates products ordered will be delivered within 1-2 days. Delivery schedule for other emirates will be completed within 2-3 days.
Free delivery for products purchased above AED 599.
We charge a nominal fee for the same day delivery. Charges are mentioned at the time of checkout.
The order for the items eligible for delivery should be placed before 12pm to get the items delivered the same day or else the delivery will be scheduled for the following day provided it’s a working day.
Delivery is not applicable on Sundays or on any public holidays.

Return And Refund Policy

Refund or exchange of the purchased product is subject to the following terms and conditions:>

1) Products must be returned within 7 days from the date of delivery received, the product must be in good and unused condition (must be unopened and in original packaging).

2) Refund to be requested with a valid reason (damaged on delivery, manufacturing defect, incorrect product)

3) Seven Plus team will inspect returned items at the collection point. (Refund will not be accepted if anything missing, used or not placed in the original packaging).

4) In the case a faulty or incorrect item has been delivered, Seven Plus will cover the return shipping costs (contact info@sevenplusuae.com)

All Card payments will be refunded to the bank account within 14 working days.

Warranty Returns/Repair Service contact : info@sevenplusuae.com for more information

Products in Promotion or Special Offer are Non-refundable or non-exchangeable
1) Services completed (Delivery, installation and labour) are Non-refundable.

Help

Give us a shout if you have any other questions and/or concerns.
Email: info@sevenplusuae.com
Phone: +971 50 700 1176
Phone: +971 50 726 3054

SKU: XM1800S-1-3-1-1-1-1-1-1-4-2-1-1-1-1-1-1-1-2-1-1-2-1-1-2-1-1-1-1-1-1-1-2-1-1-1-1-1-1-1-1-1-1-1-1-1-2-1 Categories: All Products Brand DBX Recording Studio Products Tag: recording studio

Free

Worldwide
Shopping

100%

Guaranteed
Satisfaction

30 Days

Guaranteed
Money Back

12×6 Digital Zone Processor

Features

Advanced Feedback Suppression (AFS™)
Autowarmth®
Auto Gain Control
Compression
Limiting
Noise Gating
Notch Filtering
Bandpass and Crossover Filters
Parametric EQ
Security Lockout
Wall Panel Control
RS-232 Control
IEC, UL and CSA Approvals

Reviews

There are no reviews yet.

Be the first to review “DBX 1261 12×6 Digital Zone Processor”
